Fox Body “Pre-Fitted” 8pt. Roll Cage
SKU: Fx8RC
Price range: $1,549.95 through $3,264.90
79-93 Fox Body “Pre-Fitted” 8pt. Roll Cage
Built for 79-93 Fox Body Mustang applications, this Continuous A-Pillar style 8-point pre-fitted roll cage is mock-fit in-house before shipping for easier installation and a cleaner final fit. Each kit includes marked mating surfaces, alignment indicators, and detailed reference photos specific to your cage.
Available in DOM Mild Steel or 4130 Chromoly Steel.
DESCRIPTION
79-93 Fox Body “Pre-Fitted” 8pt. Roll Cage
Designed for 79-93 Fox Body Mustang applications, this Continuous A-Pillar style pre-fitted 8-point roll cage is built and mock-fit in-house before shipping. Mating bar surfaces are marked, alignment indicators are added, and detailed digital reference photos are provided to help simplify installation.
This cage is test-fit in a mock-up chassis prior to shipping, with all mating surfaces clearly marked and alignment indicators added so everything lines up exactly where it should. Detailed digital reference photos of your exact cage are also included, highlighting key mounting points and measurements.
Faster install, less guesswork, and pro-level results without the time or cost of a chassis shop.
Available Options
NO COST OPTIONS:
● Door Bar Style: With or without factory arm rests
● Back Bar Style: Straight (rear seat delete) or Over Seat
EXTRA COST OPTIONS:
● Add Dash Bar
● Add Funny Car Cage Kit (ONLY available for Chromoly cages)
● Add Pre-Fit Corner Gussets

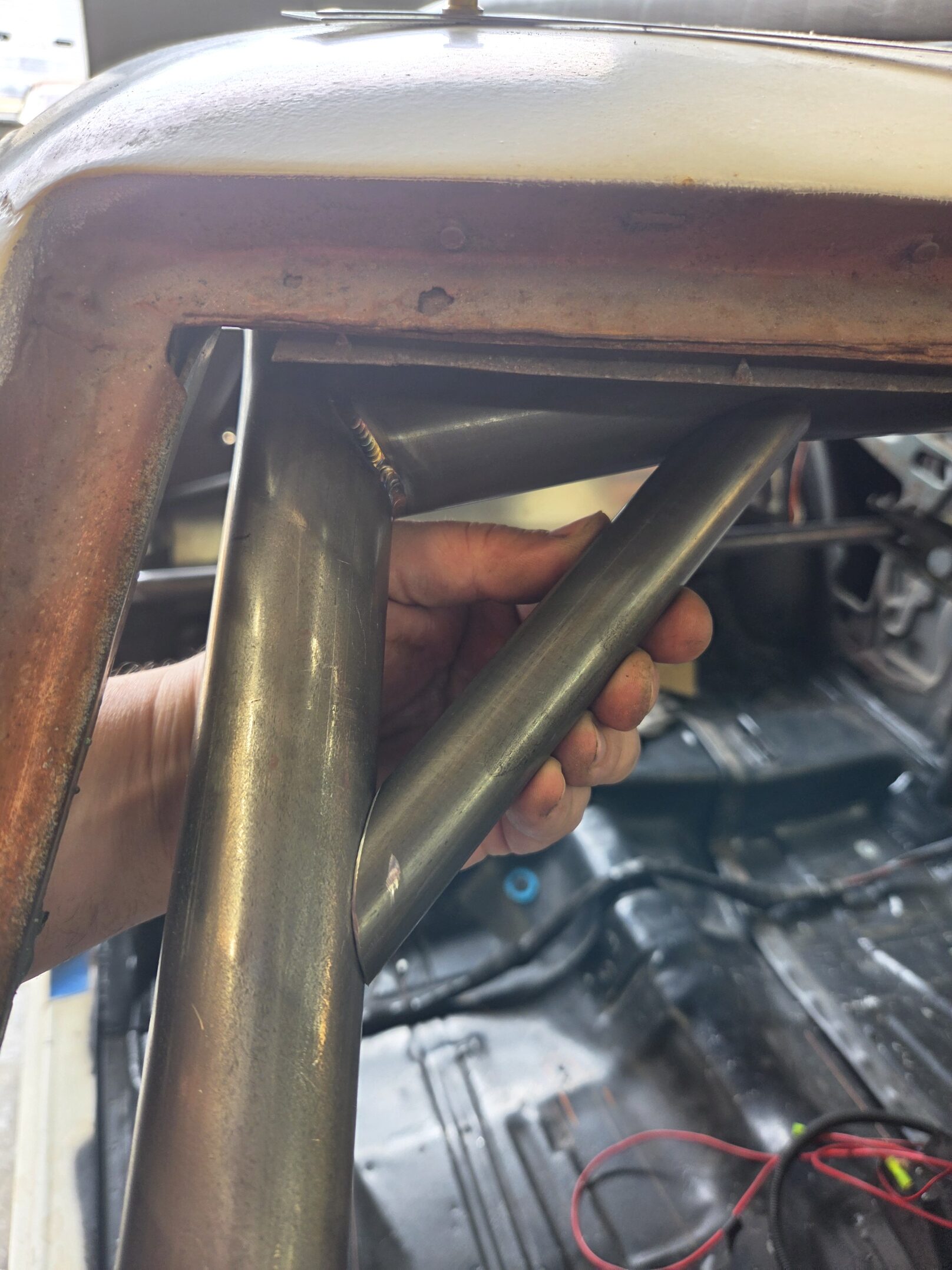

Pre-Fit Corner Gussets:
Designed for the A-pillar and windshield bar areas, these pre-fit gussets reinforce the cage joints without requiring complete weld access around the tubing in these tight areas. This is especially useful where fully welding around the A-pillar and windshield bars can be difficult once the cage is installed.

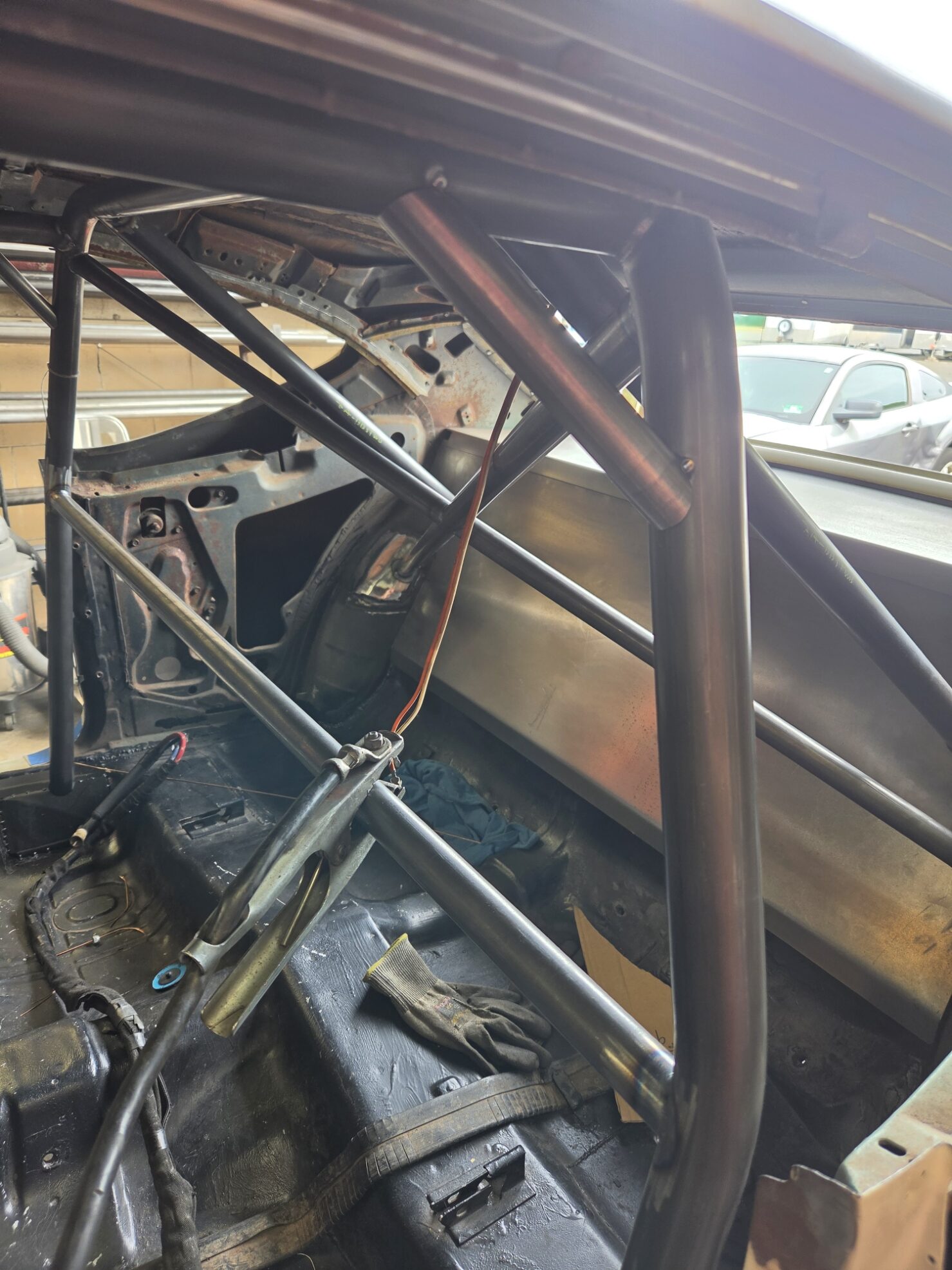

Click images to enlarge. Examples shown for reference. Gusset fitment will vary by cage application.
Custom configurations may be available. Please contact us with any questions about options, fitment, or ordering.
NHRA Notes
This 8pt cage is NHRA legal to 8.50 quarter-mile times when properly installed.
NOTE: All 8pt cages include (not shown here) 2 short “kicker” (NHRA D) bars that attach to your frame connectors behind the front seats and require final fitting. Optional dash bars are available but are not required in most cases to meet NHRA 8.50 certification.
Shipping
Approximate shipping from $250 East Coast to $300 West Coast (lower 48).
Customers can place their order online and we will follow up with a call to handle the shipping freight cost separately.
Roll Cages normally ship out in 2-3 weeks
Material Options
AVAILABLE IN: 1 3/4″ OD x .120 wall High Grade DOM Mild Steel – or – 1 3/4″ x .083 wall 4130 Chromoly Steel tubing
NOTE: 4130 Chromoly must be TIG welded.
